항공기용
Producing aircraft parts
-

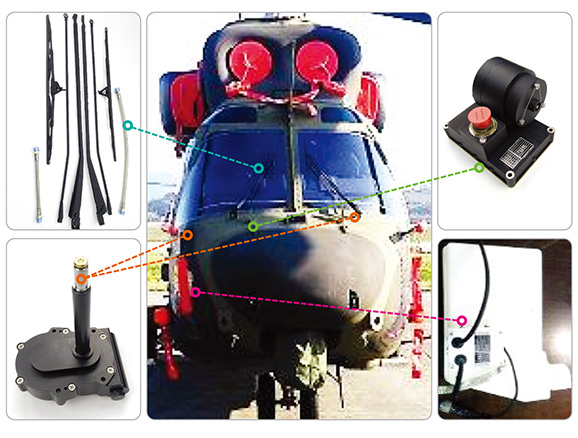

Wiper / Washer System for Aircraft
- Application
- KUH-1/ MUH-1, KAI all Helicopter
- Product composition
- Motor (BLDC), Converter, Arm, Link,
Blade, Flexible driver(L/R), Reservoir tank,Wash pump
- Specifications
-
- Fast/Slow : 160/120 Strokes/min
- Auto Parking / Built-in Sensor
- (temperature, overheat prevention , over current prevention)
- High accuracy +/- 1 degree, No lubrication for 30 years
- (Converter)
- three layers for windshield adhesion (Blade)
- Weight: 6.91 Kg / 1.54 Kg (Wiper / Washer) system.
- 28 VDC 11 Amp
※MIL-STD-810F/461E, Performance, Durability test
All aircraft custom design
(According to customer requirements)
-

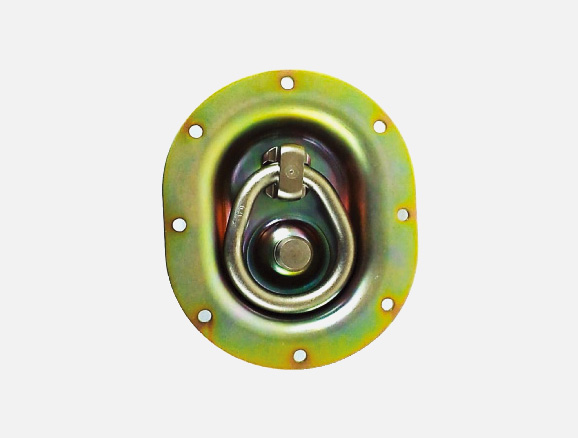

Fitting Tie Down: Cargo Ring
- Cabin floor cargo fixing
- Application
- KUH-1/ MUH-1, KAI all Helicopter
- Wight
- 0.476 Kg
- Size
- 133 x 107 x H 26 mm
- Material
- SNCM439
- Specification
-
- Cargo Ring
∙Design load : 5000 lb (2268 Kgf)
∙Proof load : 5000 lb (2268 Kgf)
∙Ultimate load : 7500 lb (3401 Kgf)
- Stud
∙Vertical load : 5475 lb (2483 Kgf)
∙Horizontal load : 2300 lb (1043 Kgf)
∙Impact load : 5950 lb (2698 Kgf)
※ Mil-STD-810F Performance Test
-

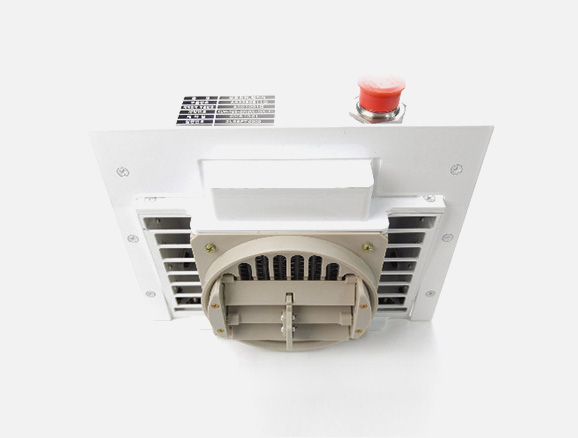

ECS Auxiliary heater for cabin
- For cabin of patient transport helicopter
- Application
- KUH-1M & KUH-1 for Civil use
- Material
- AL 6061(aluminum) / PEEK(plastic)
- Specifications
-
- Power : 115 VAC (Heater) 28 VDC (Control)
- Heater capacity : 1400 W
※MIL-STD-810F/461E, Performance, Durability test
-

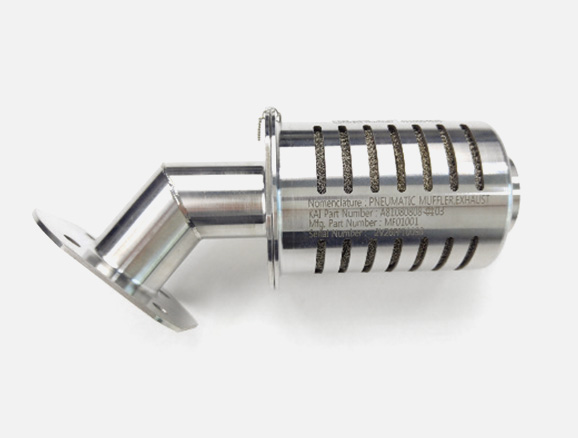

Pneumatic Muffler ECS
- Silencer ECS
- Application
- KUH-1/ MUH-1, KAI all Helicopter
- Wight
- 0.350 Kg
- Size
- 151 x 80 x H 124 mm
- Material
- CRES 321 (Stainless)
- Specification
-
- Noise reduction ability: 110 db → 90 db
- Patent number: 1020110116511
※MIL-STD-810F, Performance
※Durability test
-

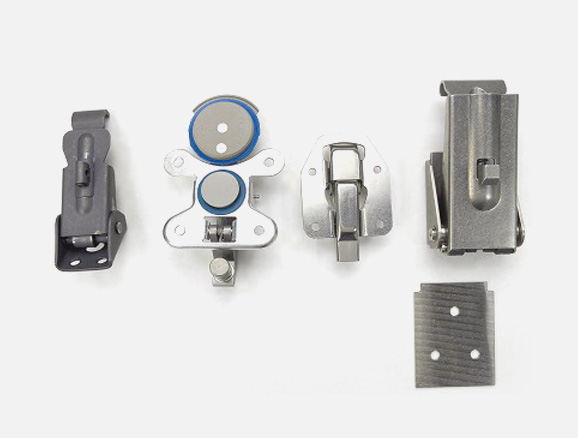

Latch Toggle / Hook / Push Bottom
-

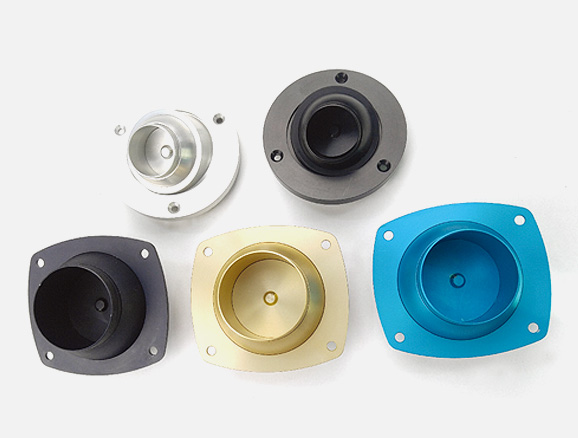

Outlet Louver, ECS vent air
-

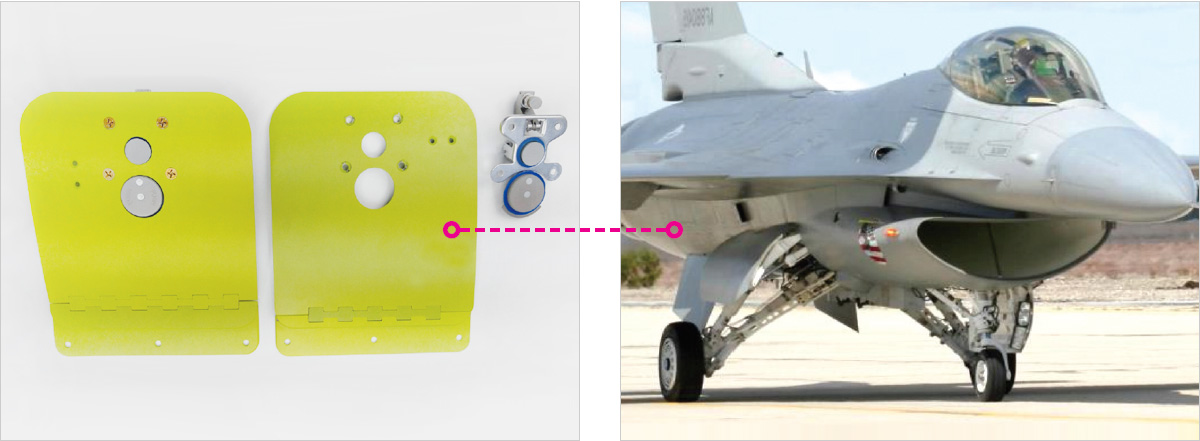

Door for F-16 (Fighting Falcon)
-

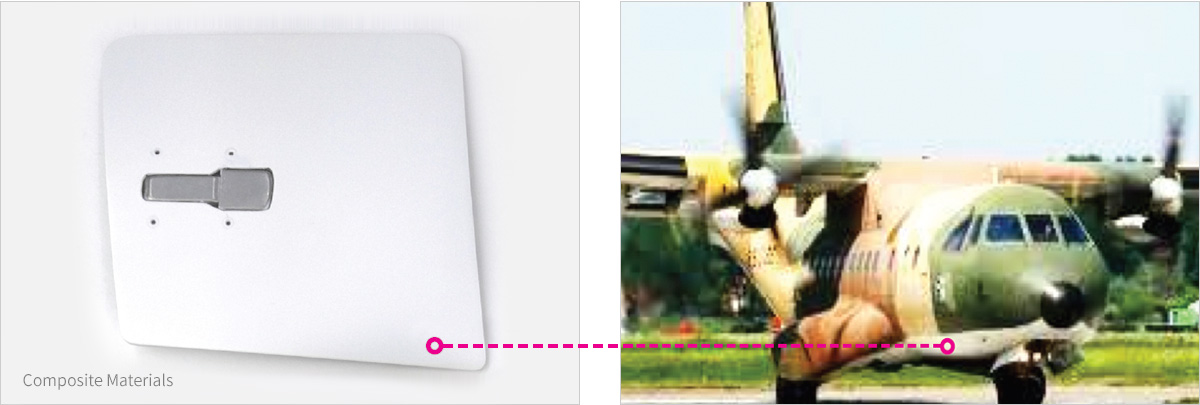

Door for CN-235 (Cargo)
